Trailmaster Blazer i200R, All Electric, 48 Volt max, Lithium Battery Pack , Up to 36 Mile range, 3 forward speeds
Trailmaster Blazer i200R, All Electric, 48 Volt max, Lithium Battery Pack , Up to 36 Mile range, 3 forward speeds

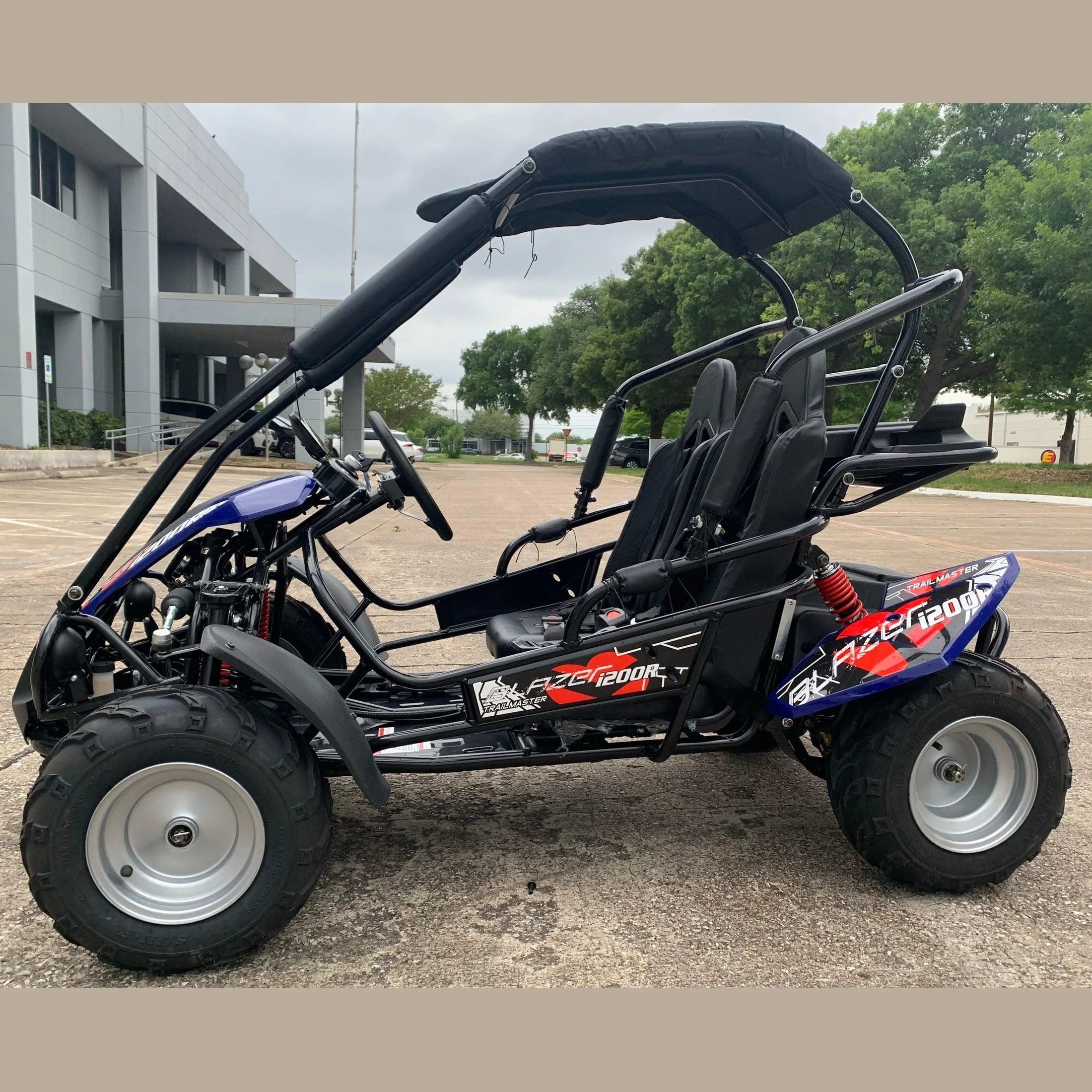

TrailMaster proudly introduces the Blazer i200R – the US's first Lithium battery mid-size go-kart! With a powerful 60V 1.8KW electric motor and a 48V 29Ah lithium battery, the Blazer i200R delivers an impressive output power of 1.4 Kw. This fully automatic go-kart, equipped with reverse, offers two forward driving modes: "D" mode with a top speed of 13M/h and "S" mode with a top speed of 27M/h. Plus, with a full charge, it can cover up to 36 miles, ensuring endless fun and excitement for riders of all ages!
Key Features:
- Powered by 48V, 29Ah Lithium battery

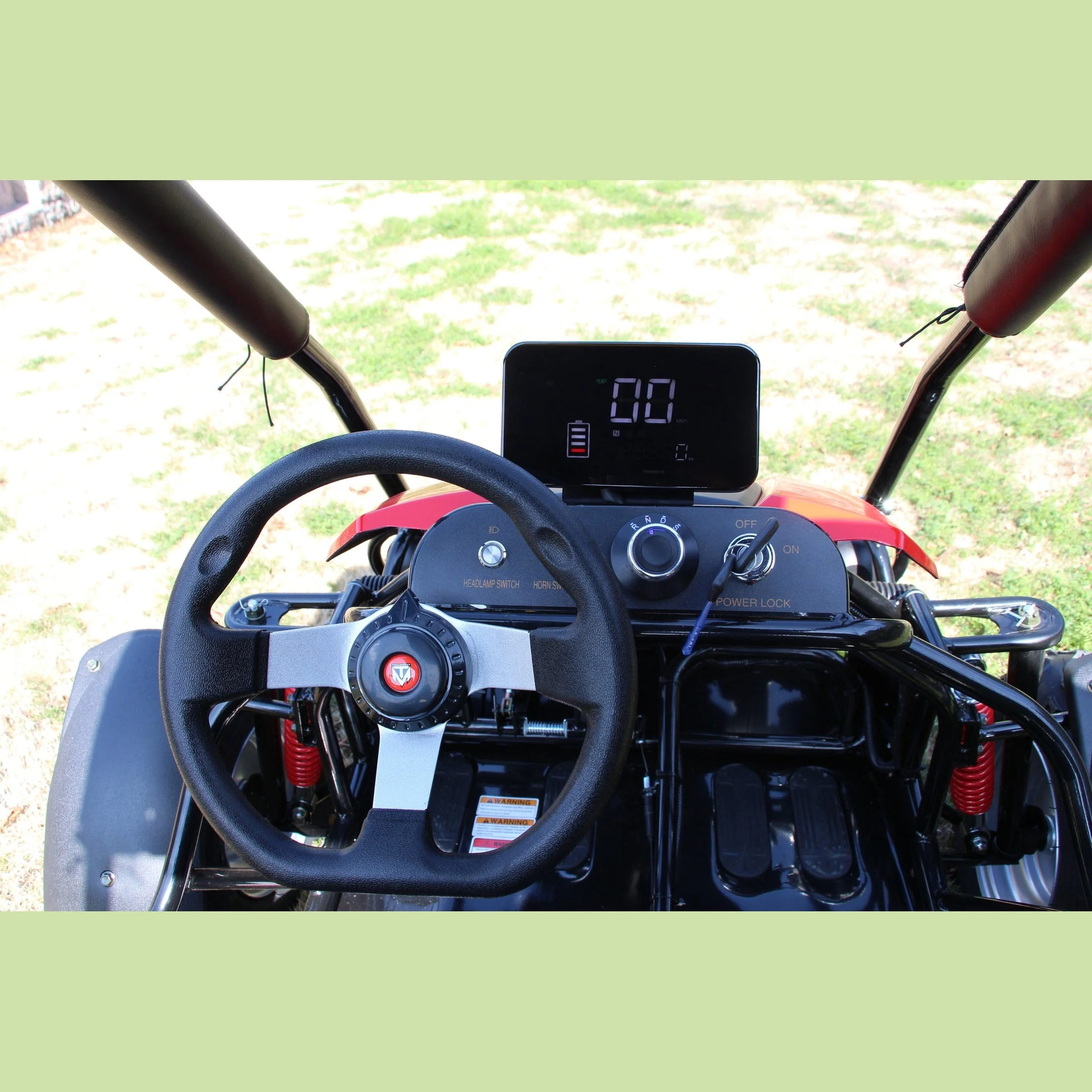

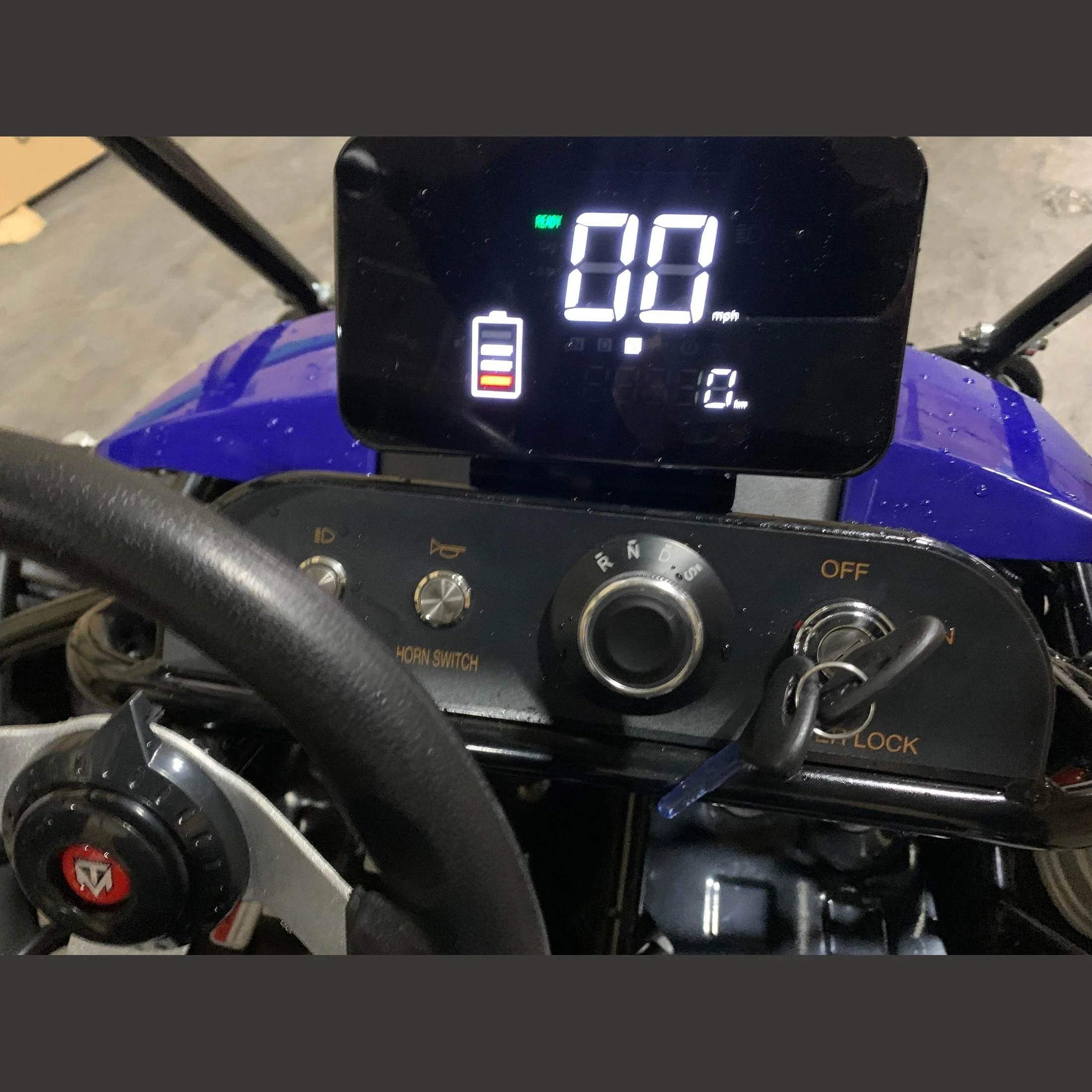

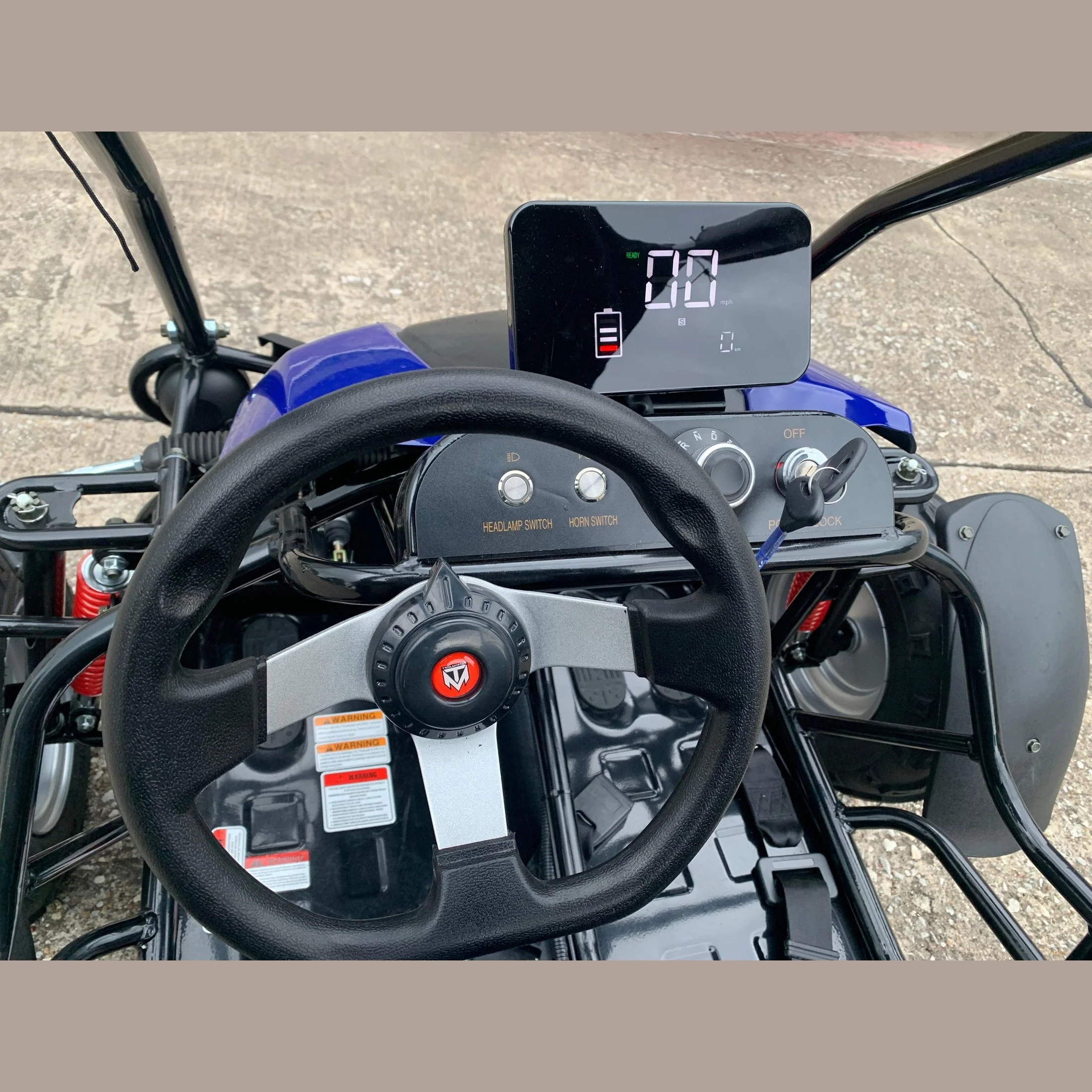

- Digital LED monitor
- Fully automatic with reverse
- Driver has to hit brake in order to engage throttle pedal for safety
- Offers two driving mode: with “D” mode top speed only 15M/h; with “S” mode top
speed 27M/h - Strong low-end torque and able to climb 20 degrees slope
- Canopy top
- 5-Point safety harness seatbelt

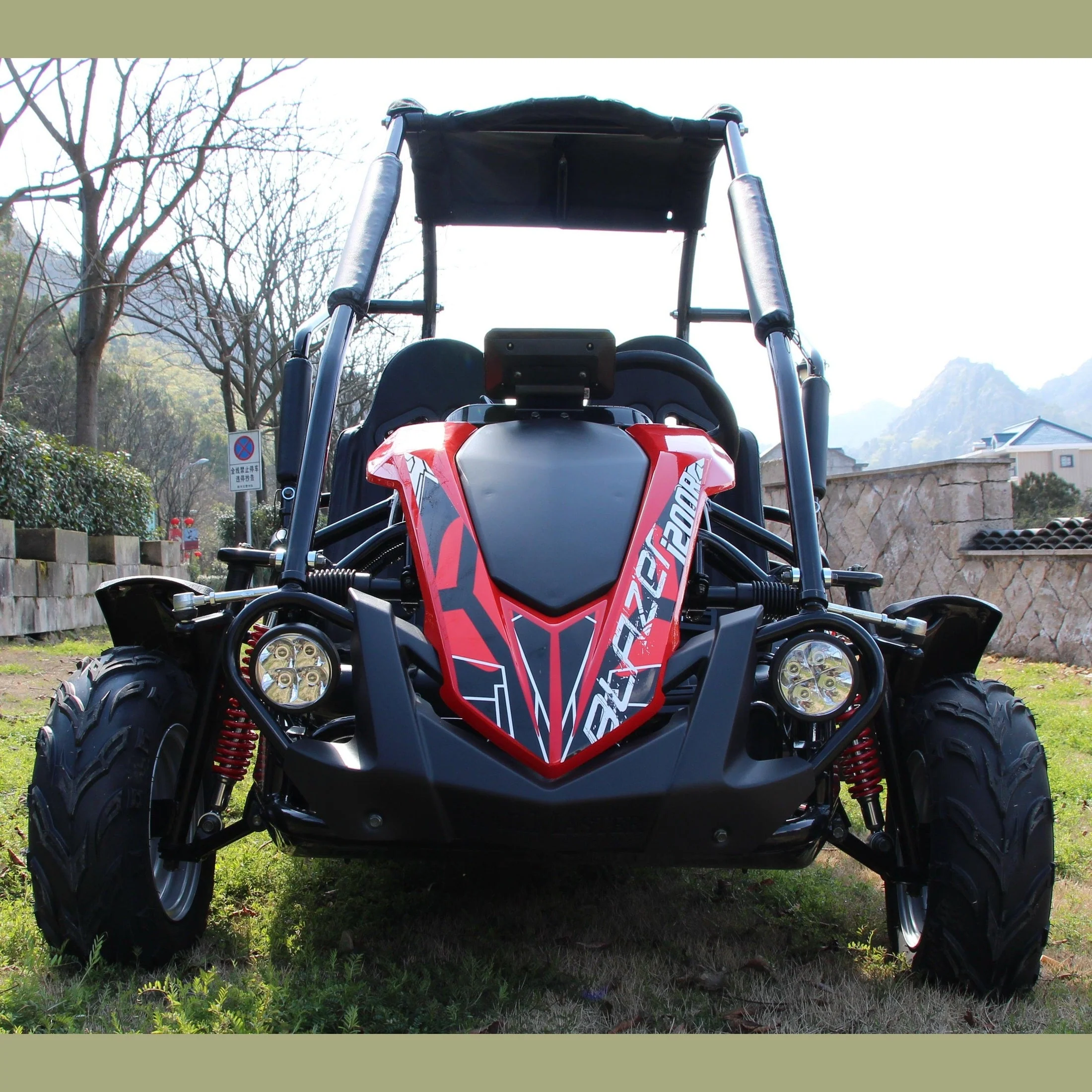

- LED headlight
- Horn
- All-wheel fenders
- Big tires: F / R: 16x6-8 / 16x7-8
- Rack and pinion steering wheel
- Hydraulic disc brake
- Padding over roll cage
- Individual sporting seats
- Adjustable driver seat: pedal to seat back adjustable from 34” to 39”
Maintenance tips:
1. If putting kart to storage, should turn off battery switch located above right
rear axle close to the wheel.
2. Battery should be charged every two months if not in use.
SPECIFICATIONS
| Battery Information | |
| Battery: | Lithium |
| Battery Weight: | 14 lbs |
| Nominal Voltage: | 48V |
| Rated Capacity: | 29Ah |
| Charging Temperature Range: | 32 °F to 115 °F |
| Storage Temperature Range: | 14 °F to 115 °F |
| Cycle Life: | Cycle to 60% at normal temperature, 100% DOD >= 600 times |
| Charging Time: | 9h |
| Range: | 36 miles max depending on weight, speed and driving conditions. |
| Battery Warranty: | 2 Year Limited warranty |
| Electric Motor Information | |
| Service Voltage: | 60V |
| Rated Power: | 1.8KW |
| Output Power: | 1.4KW |
| Rated Speed: | 4350RPM |
| Rated Current: | 33A |
| Rated Torque: | 4Nm |
| Max Torque: | 87Nm/450A |
| Current limit: | 75A |
| General Information | |

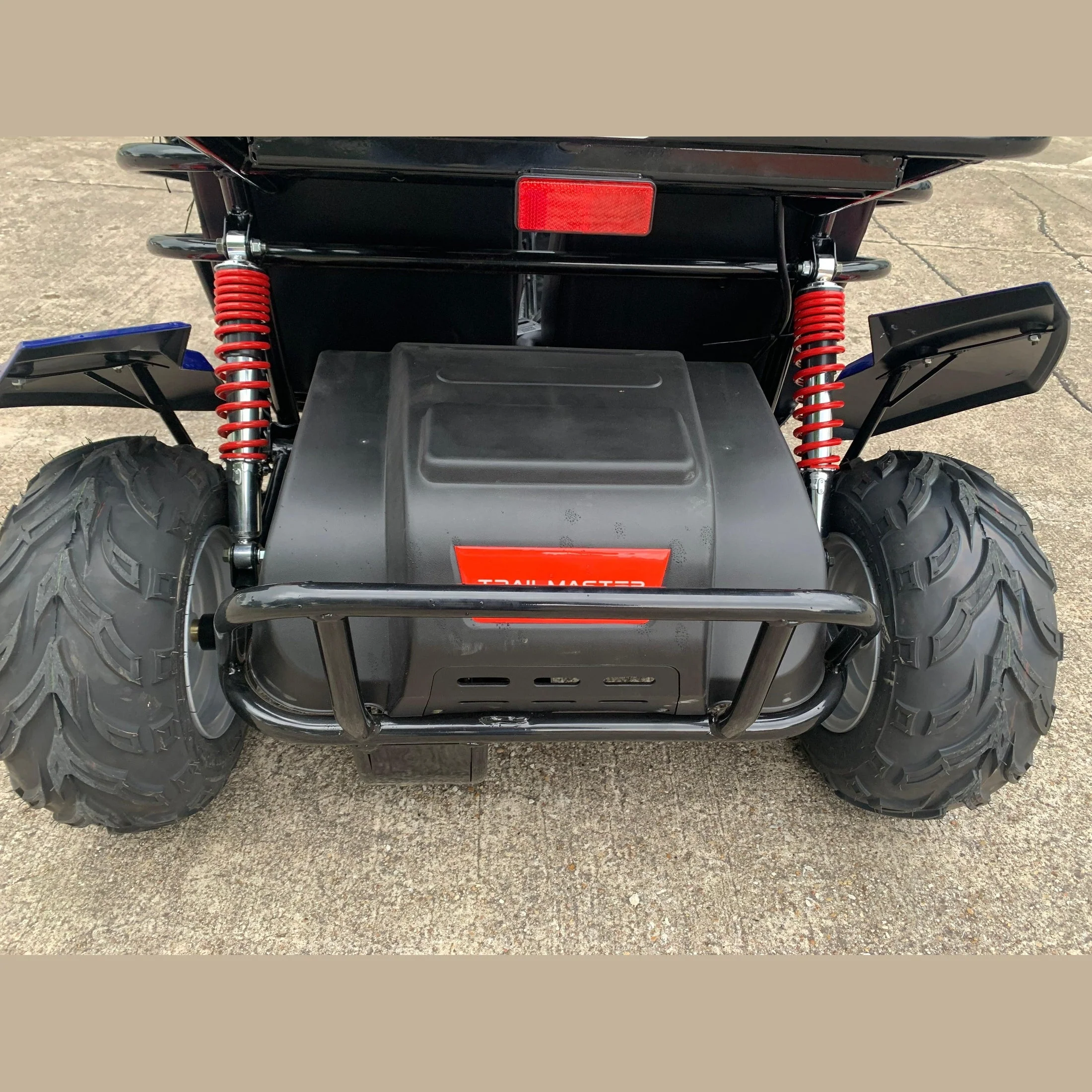

| Suspension F/R: | Double A-arm / Double Oil Damped Shock |
| Brakes, F/R: | Rear Hydraulic brake, Disc |
| Tires F/R: | 16x6-8 / 16x7-8 |
| Gross Weight: | 435 lbs |
| Net Weight: | 352 lbs |
| Max Load: | 440 lbs |
| Driving Mode: | R-N-D-S |
| Max speed: | 15mph on “D” mode; 27 mph on “S” mode |
| Climbing ability: | 20 degrees |
| Dimension Information | |
| Wheelbase: | 48.4 inches |
| Height to Seat: | 10.2 inches |
| Min Ground Clearance: | 2.8 inches |
| Pedal to seat back distance: | 34-39 inches |
| OA L x W x H: | 67x44x51.2 inches |
| Crate size: | 70X44X26 inches |
Configurations And Specifications Subject To Change Without Notice. “BV
POWERSPORTS, LLC”
